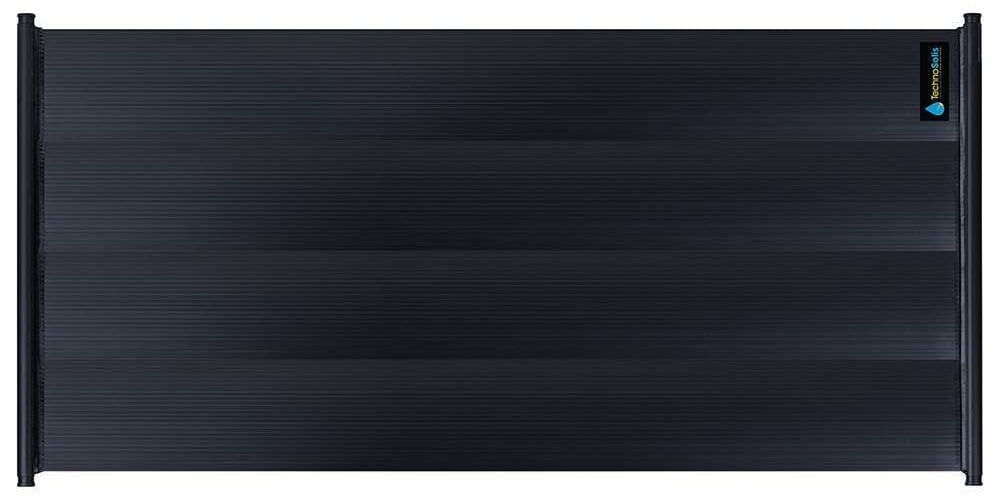

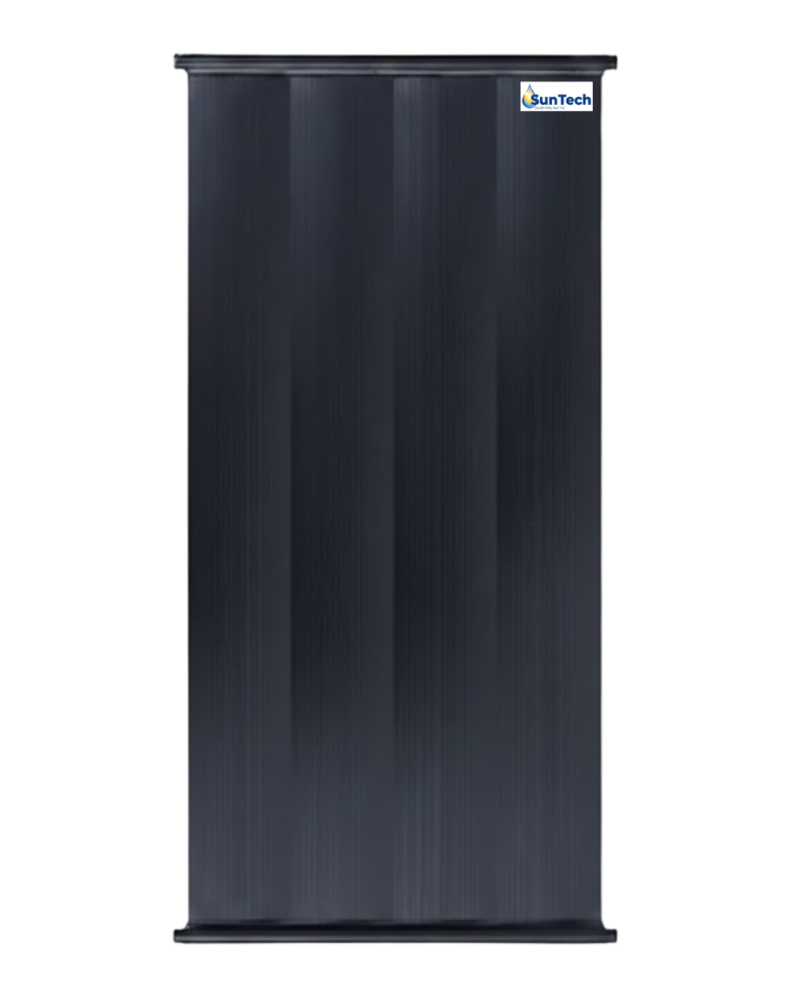

Sun Tech 4×8

Name: Sun Tech 4x8
SKU: 897565-15-1-2
Availability: InStock

$309.99

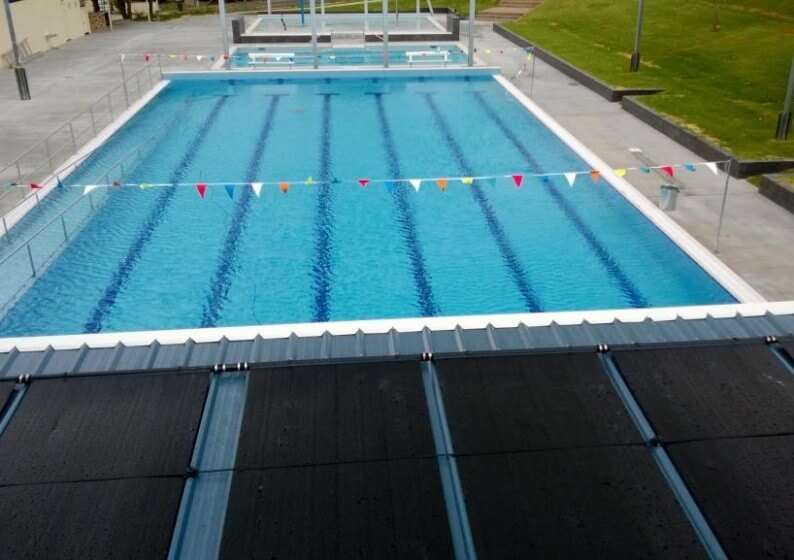

Techno-Solis solar panels are built with superior materials and engineering, designed to maximize heat transfer and withstand harsh conditions. With over 30 years of performance in the field, they remain a trusted choice for residential and commercial pool heating.

Advantages:

Highest BTU output in the industry (FSEC Rated 1006 BTU)
Withstands wind speeds up to 170 mph
Made from UV-stabilized polypropylene
10-Year limited warranty

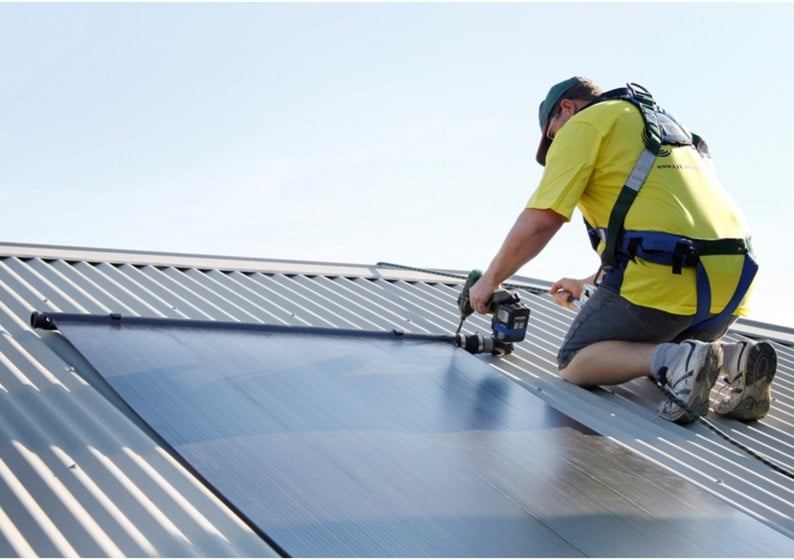

Modular and easy to install
Made in the USA

View All Advantages ›

Reliable. Efficient. Built to Last.

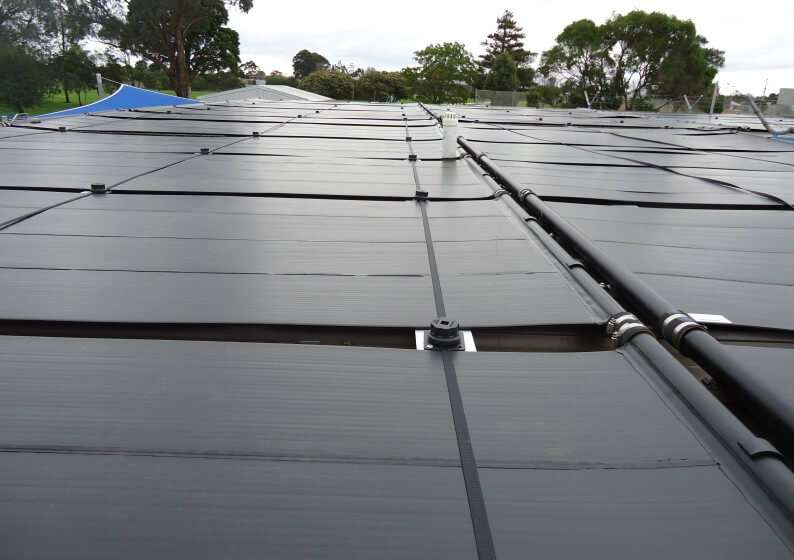

Enjoy longer swim seasons, lower energy bills, and stress-free heating with solar panels designed for performance, durability, and real results. The Techno-Solis solar panel is engineered to outperform, with no moving parts, zero maintenance, and unmatched dependability year after year. It’s the smart, sustainable way to enjoy warm pool water without relying on gas or electric heating systems.

1. Reinforced Pipe Weld Withstands hurricane-force winds.

2. Rugged Construction 35% thicker headers and channels for durability.

3. Connected Flow Tubes Insulated flow reduces heat loss vs. spaced tubes.

Additional information

Weight	20 lbs
Dimensions	50.75 × 47.5 × 96 in
Model	C20TS08

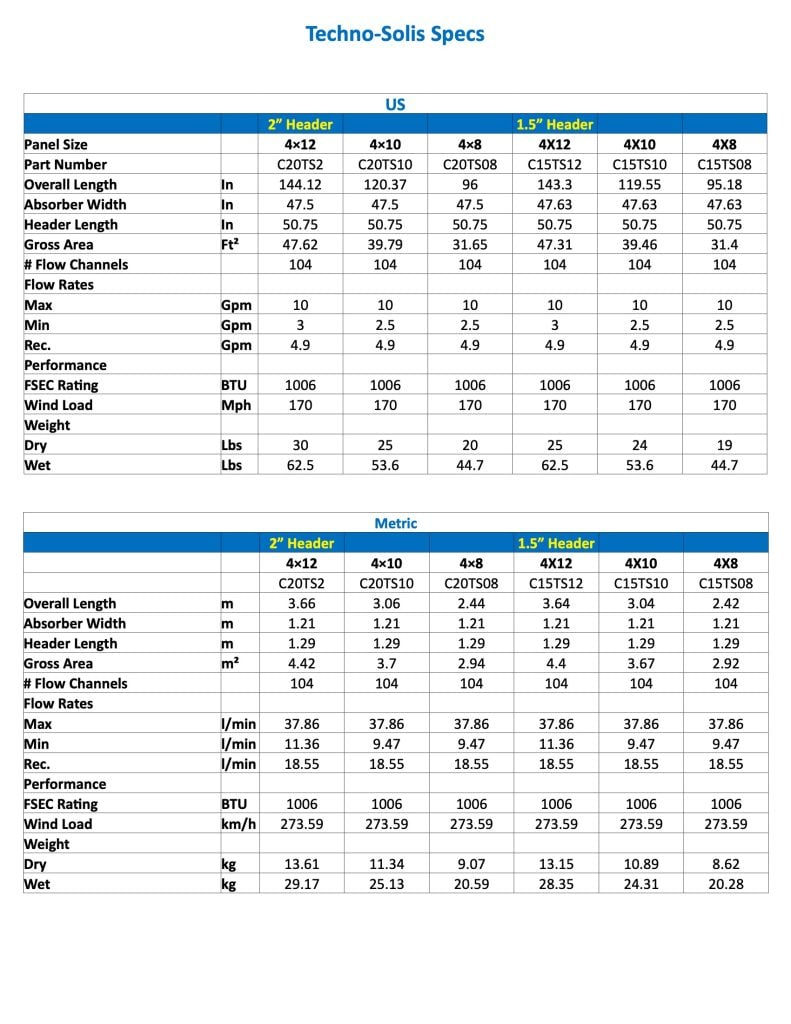

Detailed Specifications

The Techno-Solis solar heating system includes three panel sizes, each with two model variants depending on the header size. Below is a complete overview of all models and their technical specifications:
Model	Header Size	Panel Size	Overall Length (in)	Absorber Width (in)	Header Length (in)	Gross Area (ft²)	# Flow Channels	Max Flow (gpm)	Min Flow (gpm)	Rec Flow (gpm)	FSEC Rating (BTU)	Wind Load (mph)	Dry Weight (lbs)	Wet Weight (lbs)
C20TS2	2"	4x12	144.12	47.5	50.75	47.62	104	10	3	4.9	1006	170	30	62.5
C20TS10	2"	4x10	120.37	47.5	50.75	39.79	104	10	2.5	4.9	1006	170	25	53.6
C20TS08	2"	4x8	96	96 47.5	50.75	31.65	104	10	2.5	4.9	1006	170	20	44.7
C15TS12	1.5"	4x12	143.3	47.63	50.75	47.31	104	10	3	4.9	1006	170	25	62.5
C15TS10	1.5"	4x10	119.55	47.63	50.75	39.46	104	10	2.5	4.9	1006	170	24	53.6
C15TS08	1.5"	4x8	95.18	47.63	50.75	31.4	104	10	2.5	4.9	1006	170	19	44.7

Why Choose Techno-Solis?

- 1006 BTU FSEC Performance Rating

- Handles up to 170 mph wind speeds

- Durable polypropylene build

- Works with existing pool equipment

- No emissions, no extra fuel cost

Poolside Living

Warm water changes everything. Whether it’s an early morning swim or an afternoon with family, Techno-Solis makes your pool more inviting and enjoyable, without seasonal limits.

☀️ More swim days.

💧 More comfort.

💰 More savings.
